Every monsoon season, millions of liters of rainwater pour down on rooftops in our cities—only to vanish into drains, often causing urban flooding. Yet, with a little creativity, that same rainwater could lower your bills, support your garden, and provide an eco-friendly backup supply.
This is where DIY rainwater harvesting for urban homes comes in. Unlike complex municipal systems, a home-based setup is affordable, sustainable, and surprisingly easy to build. At Eco Gear Guides, we believe small eco-hacks like this can transform city living into a greener experience.
Let’s dive into the how, why, and real-world potential of harvesting rain in your own backyard—or rooftop.

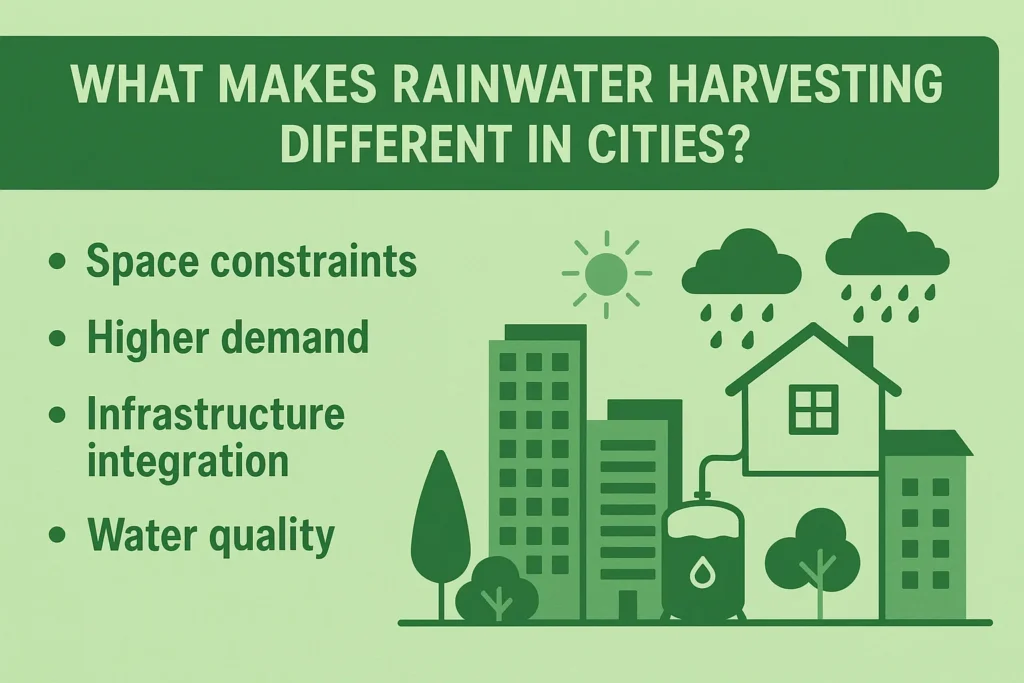

What Makes Rainwater Harvesting Different in Cities?
Unlike rural areas with open catchments, urban homes face unique challenges—limited space, concrete rooftops, and higher pollution levels. But these challenges also create opportunities:
- Flat roofs become excellent collection surfaces.
- Vertical storage tanks fit well in small yards.
- Smart filters can remove urban dust and debris.
- Shared rooftop setups work in apartment buildings.
Unique perspective: Urban rainwater harvesting isn’t just about water—it’s also about reducing stormwater runoff, which helps prevent city flooding.
Why Should You Try DIY Rainwater Harvesting?
- Cut Costs – Save up to 30–50% on monthly water bills.
- Resilient Living – Have an independent water source during supply breakdowns.
- Eco-Friendly – Reduce groundwater extraction and energy used in water treatment.
- Urban Gardening Boost – Rainwater is naturally soft and better for plants.
- Smart Investment – Adds long-term value to your property.
Core Components of a Rainwater Harvesting System
| Component | Purpose | DIY-Friendly Example |
|---|---|---|
| Catchment | Collects rainfall | Rooftop, terrace, or even a balcony canopy |
| Conveyance | Transfers water | Gutters, PVC pipes, or recycled pipes |
| First-Flush Diverter | Discards dirty first rainwater | Simple valve or T-joint system |
| Filter | Removes debris & dust | Mesh screen, sand-charcoal filter |
| Storage Tank | Holds clean water | Recycled barrels, plastic tanks, underground cisterns |
| Outlet | Provides access to water | Tap, garden hose, drip irrigation |
Step-by-Step: How to Build Your Own Urban Rainwater System
1. Estimate Your Potential Harvest
Use this formula:
Rainfall (mm) × Roof Area (m²) × 0.8 (efficiency factor) = Liters you can collect
Example: A 100 m² roof in Islamabad with 900 mm rainfall can collect 72,000 liters annually.
2. Install Gutters and Downpipes
Add gutters with a slight slope to guide rainwater into downpipes. For a DIY budget, use PVC pipes or even repurposed plastic tubing.
3. Add a First-Flush Diverter
The first 10–15 minutes of rainfall often carries dust and pollutants. A diverter ensures this dirty water doesn’t reach your tank.
4. Build a Simple Filter
A 3-layer filter with gravel, sand, and charcoal works well. You can also use a mesh screen for smaller setups.
5. Choose Storage Based on Space
- Small homes: Plastic drums or recycled barrels.
- Medium homes: 1,000–2,000 liter vertical tanks.
- Apartments: Shared underground storage.
6. Connect Distribution Outlets
Install taps or connect the tank to toilets, washing machines, or garden hoses.
Real-World Examples
Example 1: Karachi Rooftop Saver
A family in Karachi installed a 1,500-liter tank with PVC gutters and a DIY filter. During monsoon, they collected nearly 18,000 liters, covering all gardening and car-washing needs. Their water bill dropped by 35%.
Example 2: Singapore Green Apartments
In Singapore, many apartment complexes use shared rooftop harvesting systems. Collected rainwater irrigates community gardens and reduces dependence on municipal water.
These examples show that rainwater harvesting is versatile—working in both developing and advanced urban settings.
Read More : DIY Recycled Paper: How to Make and Use It
Cost vs. Savings: Is It Worth It?
| Item | DIY Setup Cost | Professional Setup Cost | Potential Savings |
|---|---|---|---|
| Gutters & Pipes | PKR 5,000–8,000 | PKR 15,000+ | — |
| Filter | PKR 2,500–4,000 | PKR 10,000+ | — |
| Storage Tank (1,000 L) | PKR 10,000–15,000 | PKR 25,000+ | — |
| Total | PKR 20,000–30,000 | PKR 50,000+ | PKR 8,000–15,000 saved annually |
Unique angle: A DIY system usually pays for itself within 2–3 years, after which it’s pure savings.
Common Challenges & Smart Solutions
- Dusty Roofs → Install a first-flush diverter.
- Small Spaces → Use stackable barrels or modular tanks.
- Maintenance Issues → Design easy-to-open filters for quick cleaning.
- Uncertain Rainfall → Combine with greywater recycling for year-round savings.
Eco Gear Guides Advice
At Eco Gear Guides, we recommend starting small and scalable. Even a single 200-liter barrel can make a difference. As you grow confident, expand your system with larger tanks, advanced filters, or even solar-powered pumps for distribution.
Remember: the best system is the one you actually build and maintain.
Conclusion
DIY rainwater harvesting isn’t just about saving water—it’s about reshaping how cities manage resources. With minimal tools, recycled materials, and a bit of creativity, every urban household can harvest thousands of liters annually.
From cutting bills to preventing floods, the benefits are endless. More importantly, each system—big or small—contributes to a greener, more sustainable city.
So next time it rains, don’t let that water go to waste. Turn your rooftop into a mini water plant—your wallet, your plants, and the planet will thank you.
Read More : Eco-Friendly Kids Crafts with Recyclables
FAQs
1. Is harvested rainwater safe to drink?
With advanced filtration, yes. But for basic DIY systems, it’s best for gardening, washing, and toilets.
2. Can I use it in an apartment?
Yes. Residents can pool resources for a shared rooftop system or install smaller balcony-based collectors.
3. How often should I clean the system?
Clean gutters every month and tanks at least twice a year.
4. What if my city gets little rainfall?
Even low rainfall adds up—especially if you have a large catchment surface.
5. Does it increase property value?
Yes. Eco-friendly homes with harvesting systems are increasingly attractive to buyers.
